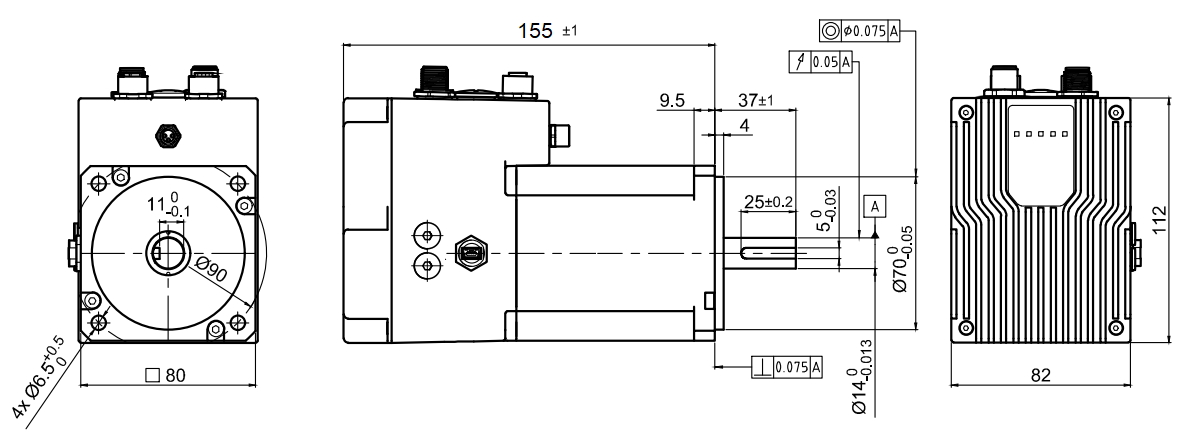

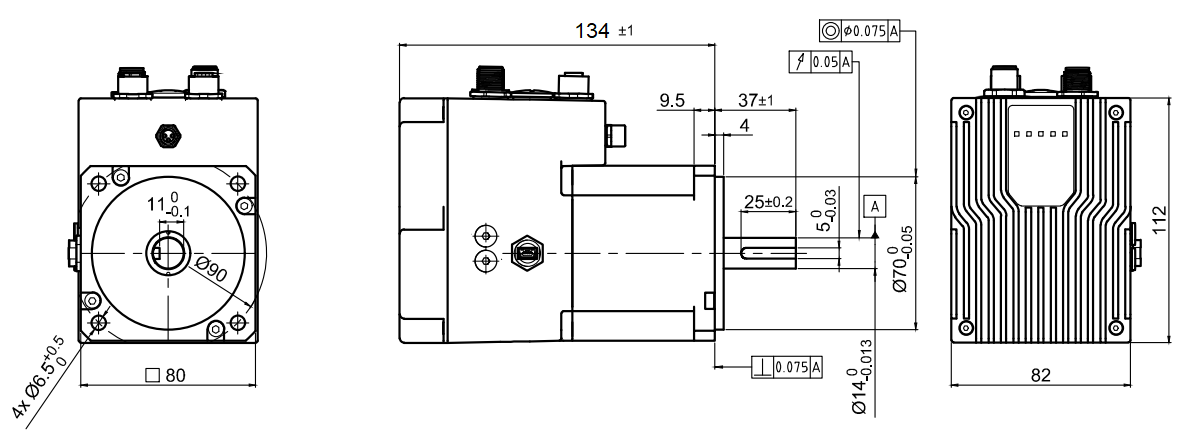

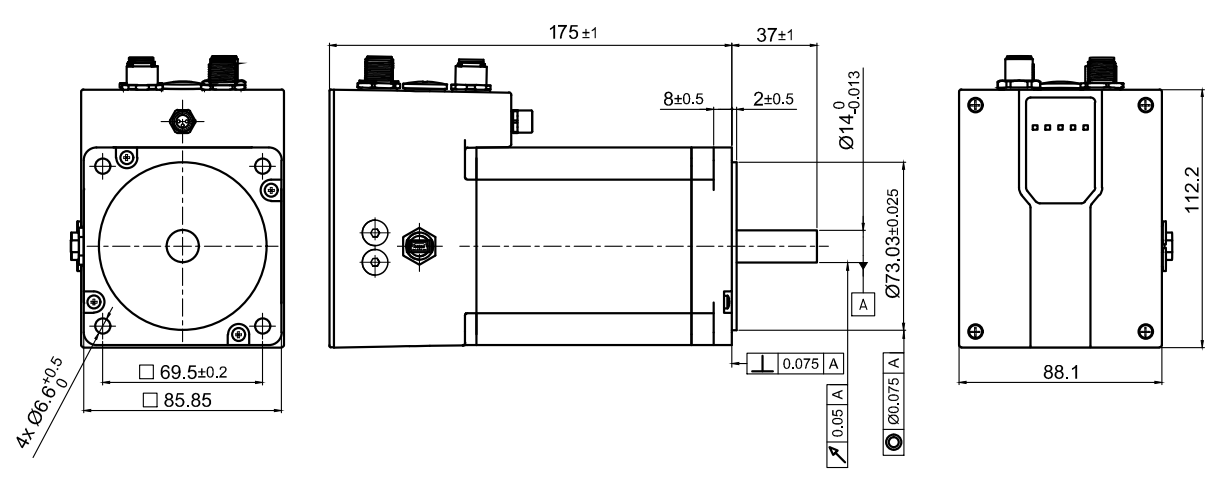

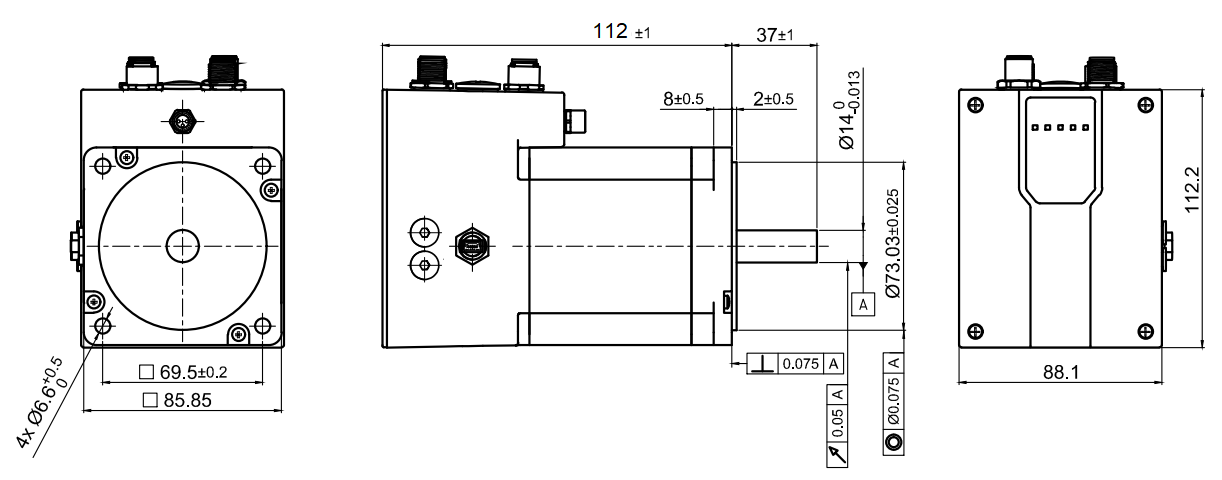

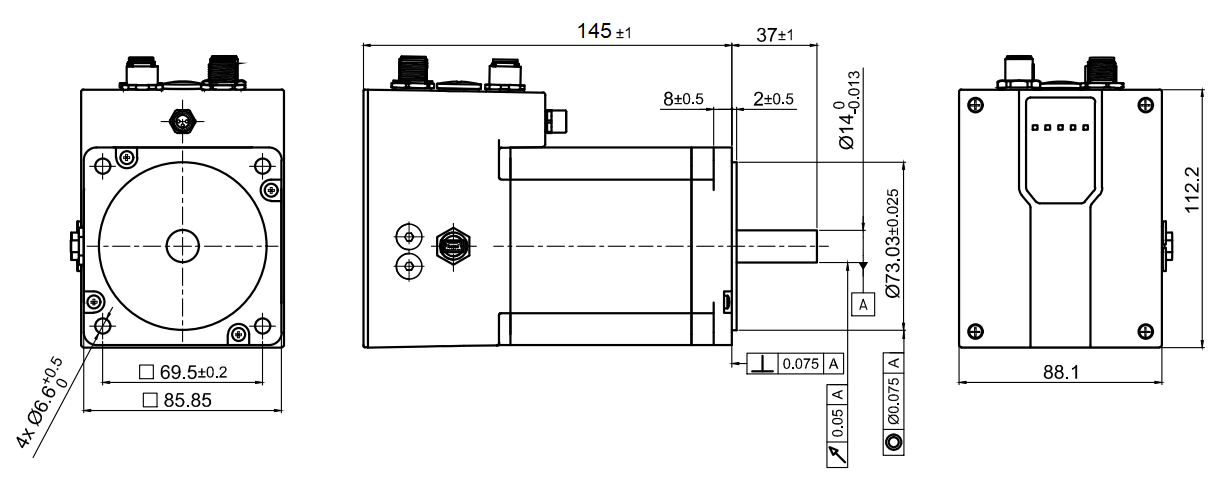

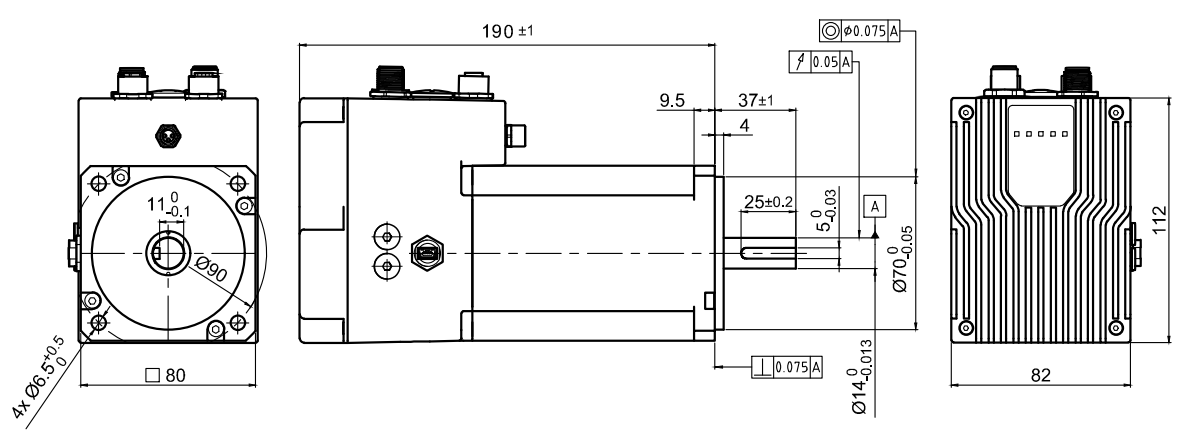

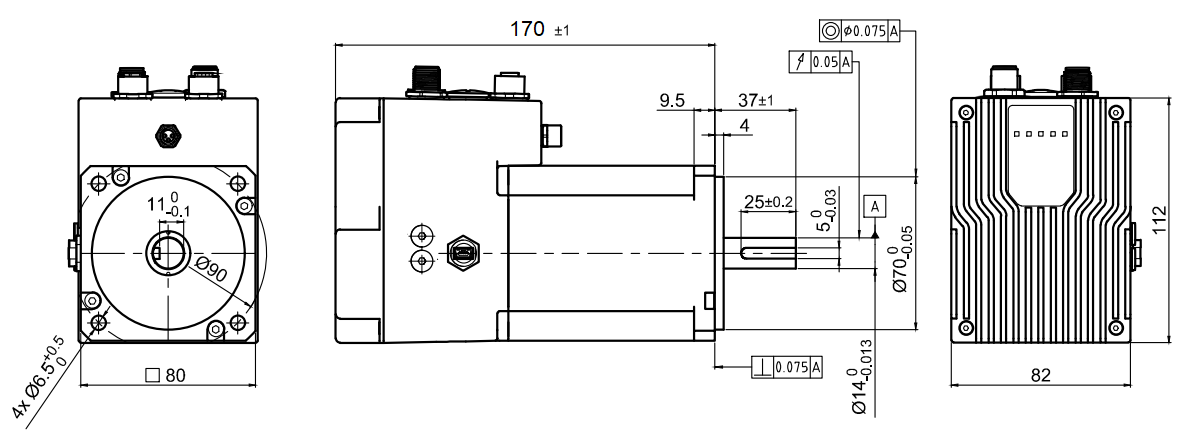

Dimensioned drawings All dimensions are in millimeters. PD6-E891S95-E-65-5 PD6-E891M95-E-65-5 PD6-E891L95-E-65-5 PD6-EB80SD-E-65-5 PD6-EB80MD-E-65-5 PD6-EB80LD-E-65-5 PD6-EB80CD-E-65-5
