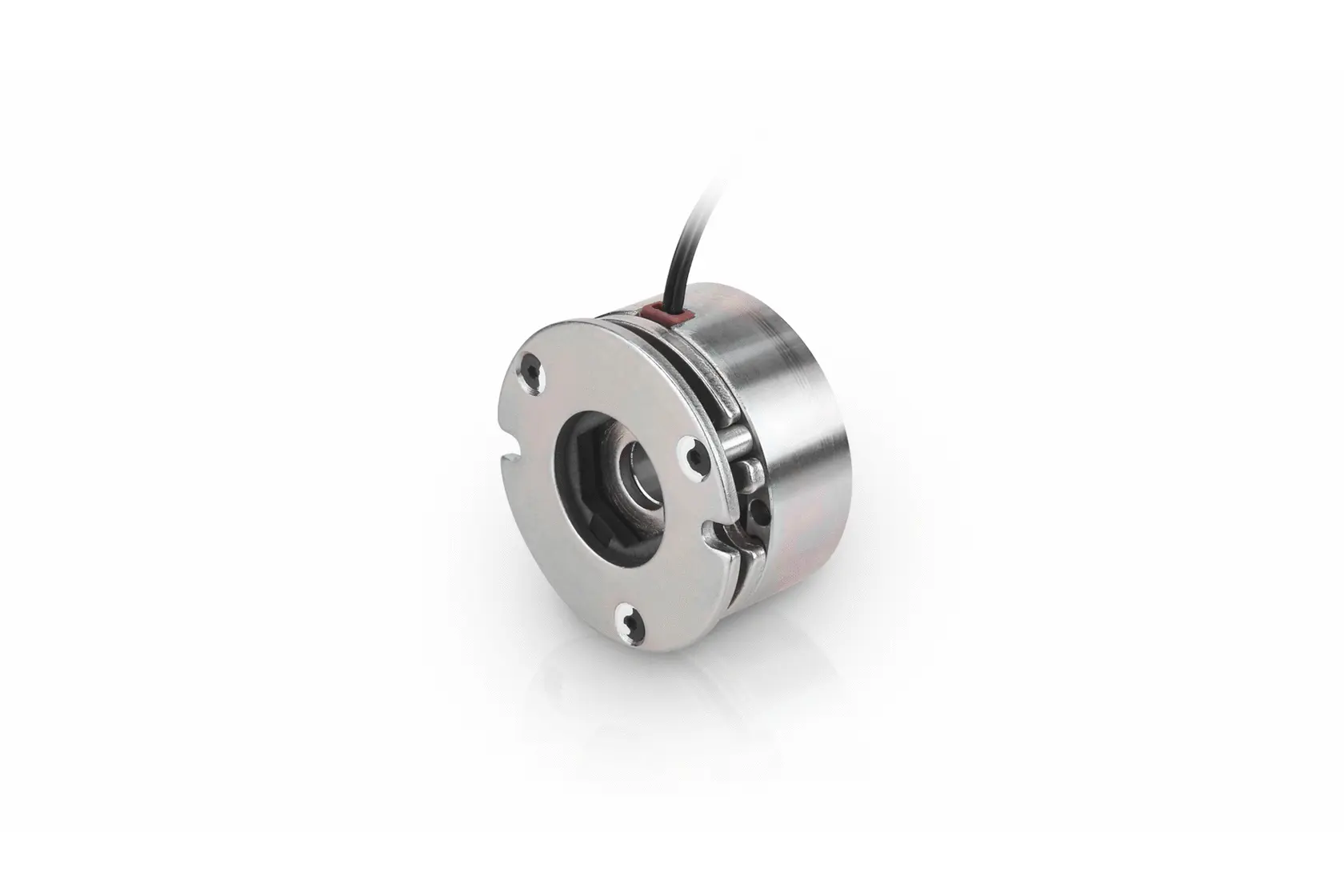

BWA –  弹簧刹车

Spring-loaded brake for stepper motors and brushless dc motors

通过 BRAKE-BWA，Nanotec 提供电动弹簧加载式刹车，其设计非常紧凑，可用作静态保持刹车。它可以直接安装在轴直径为 5 或 6.35 mm 的电机上。如果电机使用长 B 轴，编码器也可以直接安装在刹车上。由于刹车带有螺纹孔，因此不需要额外的适配电路板。提供两种长度。 BWA 刹车可以随同电机订购。

BWA 商品
