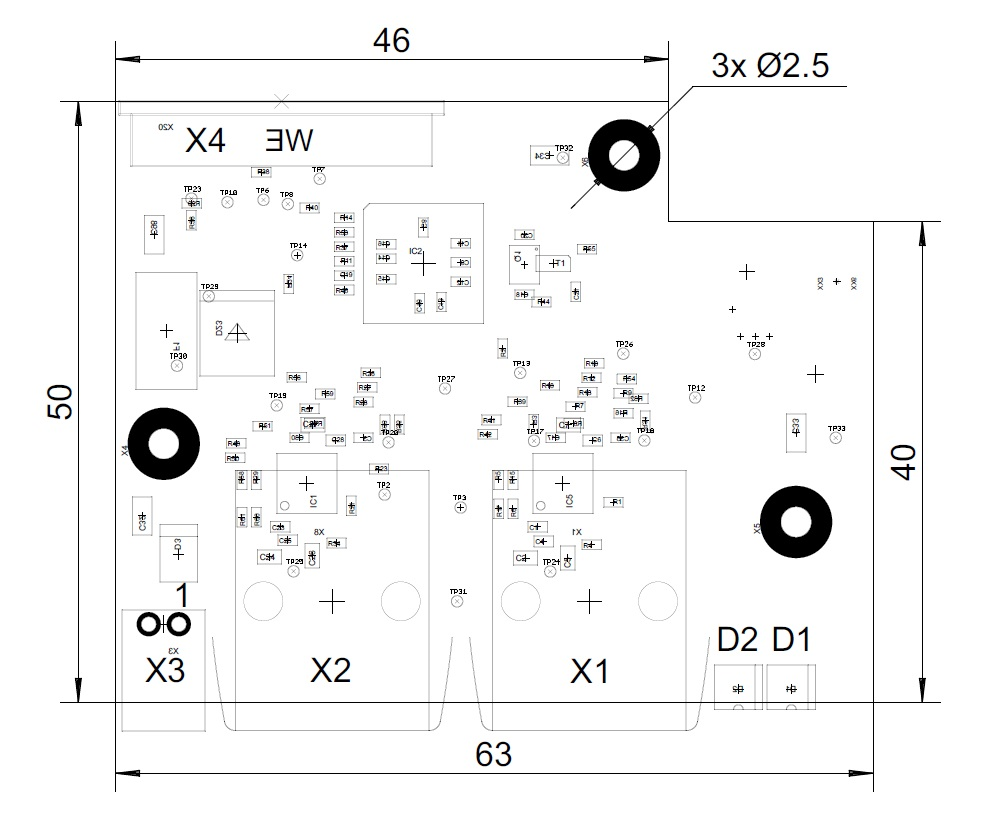

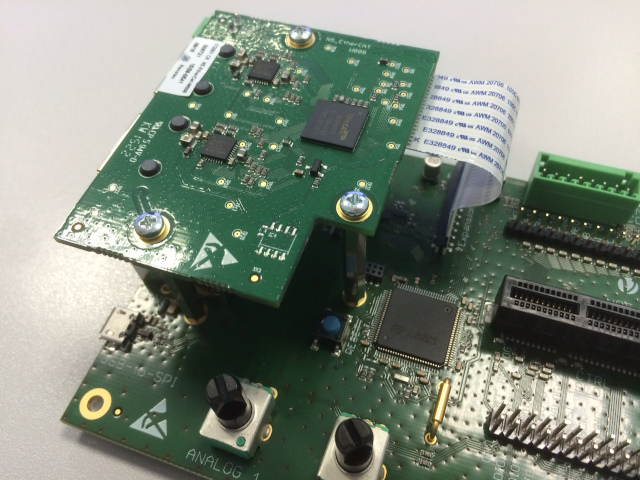

Extension for EtherCAT (additional board) Discovery Board DK-NP5-68 is equipped with an additional board for communication via EtherCAT . Dimensioned drawings – EtherCAT additional board Dimensions are in [mm]. Hardware overview – EtherCAT additional board Name Function Note X1 EtherCAT IN X2 EtherCAT OUT X4 Connection to Discovery Board NP5 D1 ERROR status indicator for EtherCAT D2 RUN status indicator for EtherCAT
