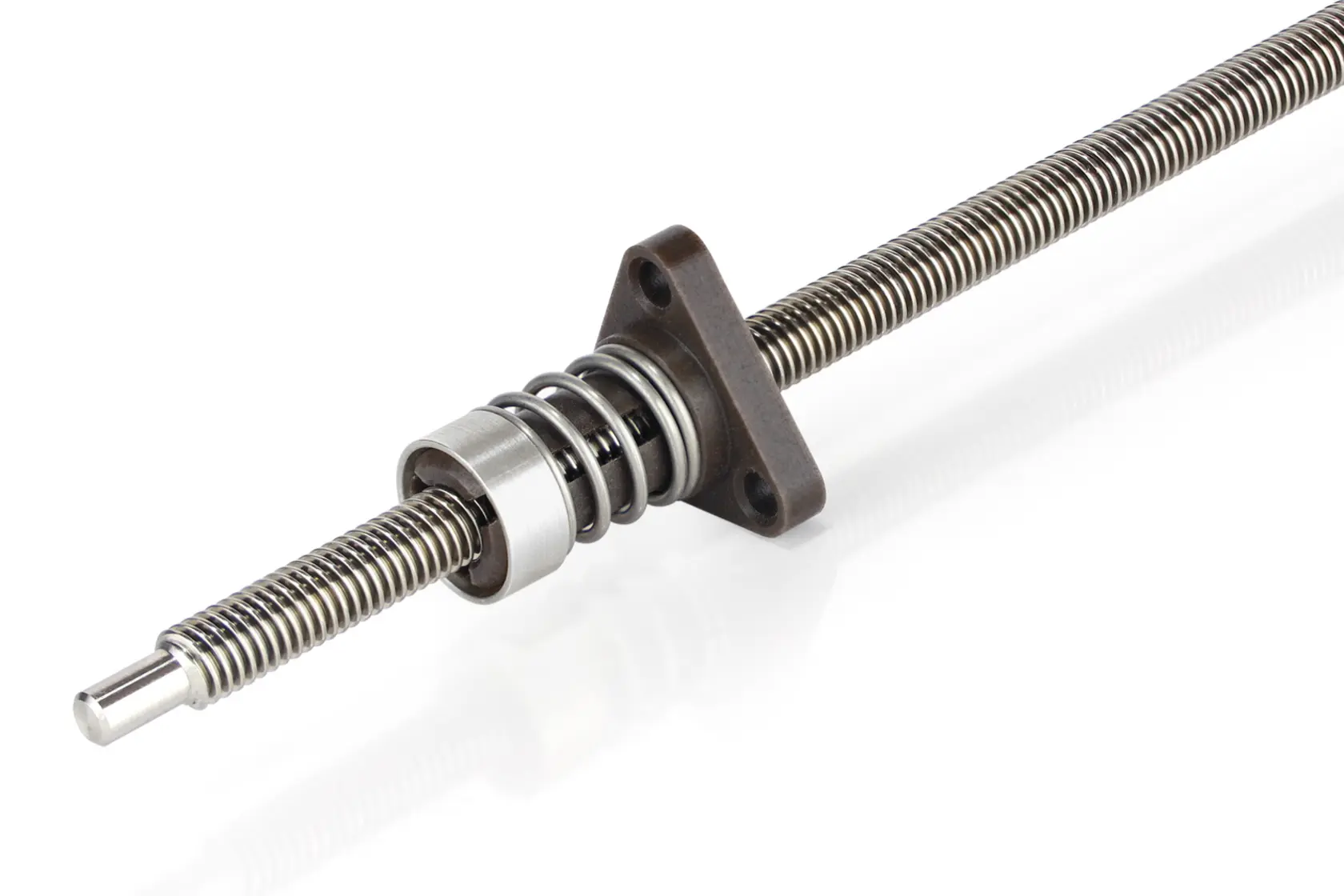

LSNUT-AF –  径向消隙螺纹螺母，带压缩弹簧

Threaded nut with no axial backlash for stepper motor linear actuators

我们的 LSNUT-AF 消隙螺母设计用于精确定位，并在运行过程中通过螺旋弹簧重新调整。

该系列可与 Nanotec 的 NEMA 17 和 NEMA 23 LSA 外部驱动式直线步进电机一起使用。

  • ACME 和梯形螺纹
  • 优化了静态和动态负载
  • 高重复定位精度
  • 低牵引力矩
  • 使用寿命长

这种类型的螺母非常适用于必须快速移动小负荷的应用，如敏感的实验室设备、包装机械或 3D 打印机。
