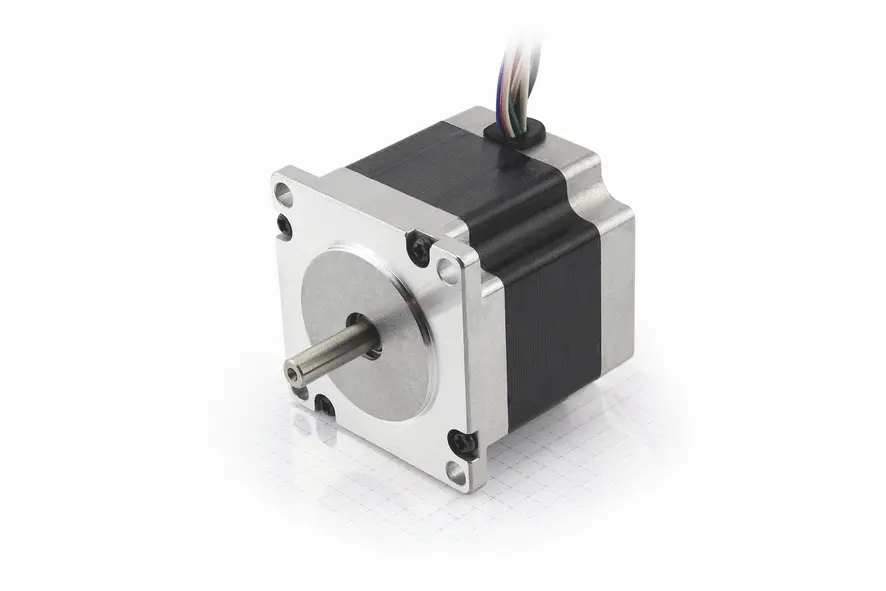

ST5918M1008-A – 步进电机 - NEMA 23
您可以对此商品进行其他配置。请单击下面的配置按钮开始。
技术数据
-
NEMA 23
-
相电流 1 A
-
双极性保持转矩 124.45 Ncm
-
相电阻 6.9 Ohm
-
分辨率 1.8 °/步
-
重量 0.7 kg
-
尺寸 56 mm
-
单极性保持转矩 88 Ncm
-
转子的转动惯量 300 gcm²
-
相电感 14 mH
-
机身长度“A” 56 mm

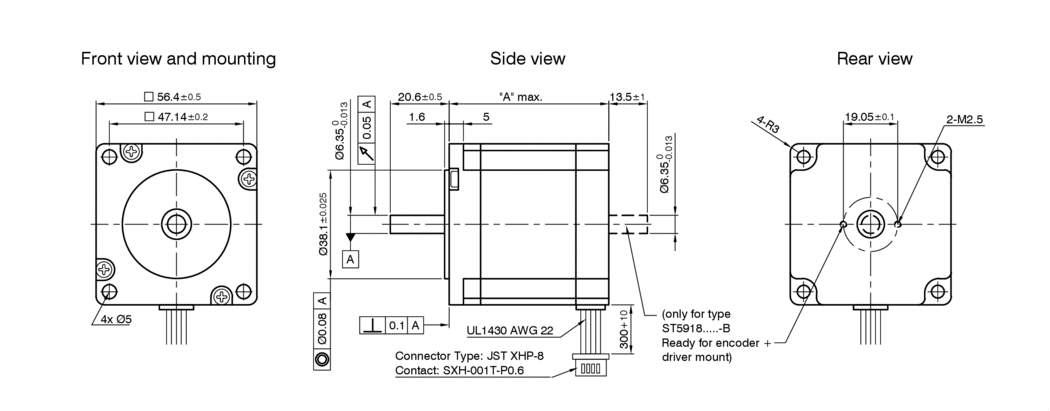

尺寸
力矩曲线
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
转矩
|
输出功率
|
转矩 [Nm]/153.75rpm
|
||
|---|---|---|---|---|
| 1.4A 24V 并联 | 0.882 | |||
| 1.4A 48V 并联 | 1.1 | |||
| 0.7A 24V 串联 | 0.587 | |||
| 0.7A 48V 串联 | 0.813 | |||
|
|
||||
