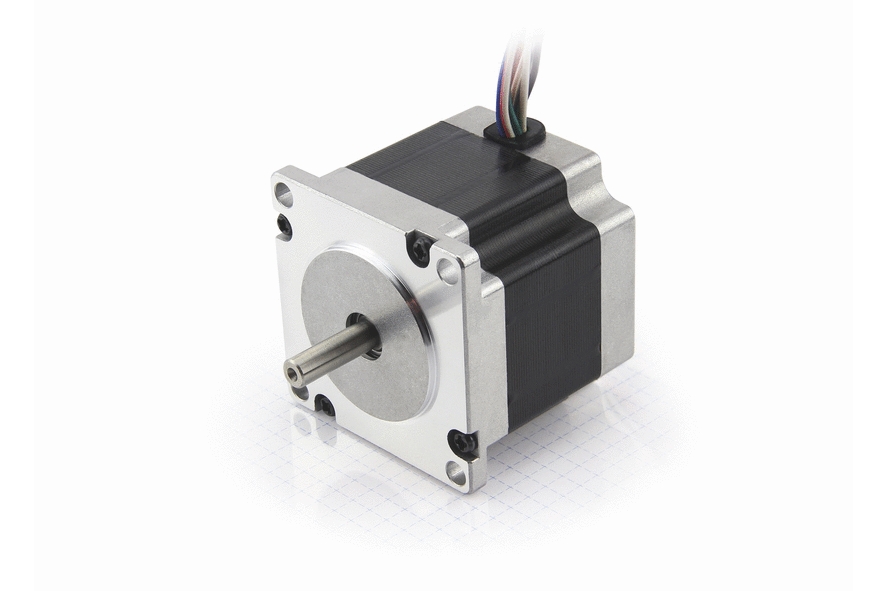

ST5909S1008-B – 步进电机 0.9° - NEMA 23
您可以对此商品进行其他配置。请单击下面的配置按钮开始。
技术数据
-
NEMA 23
-
相电流 1 A
-
双极性保持转矩 101.82 Ncm
-
相电阻 6.6 Ohm
-
分辨率 0.9 °/步
-
重量 0.65 kg
-
尺寸 56 mm
-
单极性保持转矩 72 Ncm
-
转子的转动惯量 275 gcm²
-
相电感 13 mH
-
机身长度“A” 51 mm
尺寸
力矩曲线
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
转矩
|
输出功率
|
转矩 [Nm]/227.25rpm
|
||
|---|---|---|---|---|
| 1.42A 24V 并联 | 0.349 | |||
| 1.42A 48V 并联 | 0.633 | |||
| 0.67A 24V 串联 | 0.16 | |||
| 0.67A 48V 串联 | 0.346 | |||
|
|
||||
