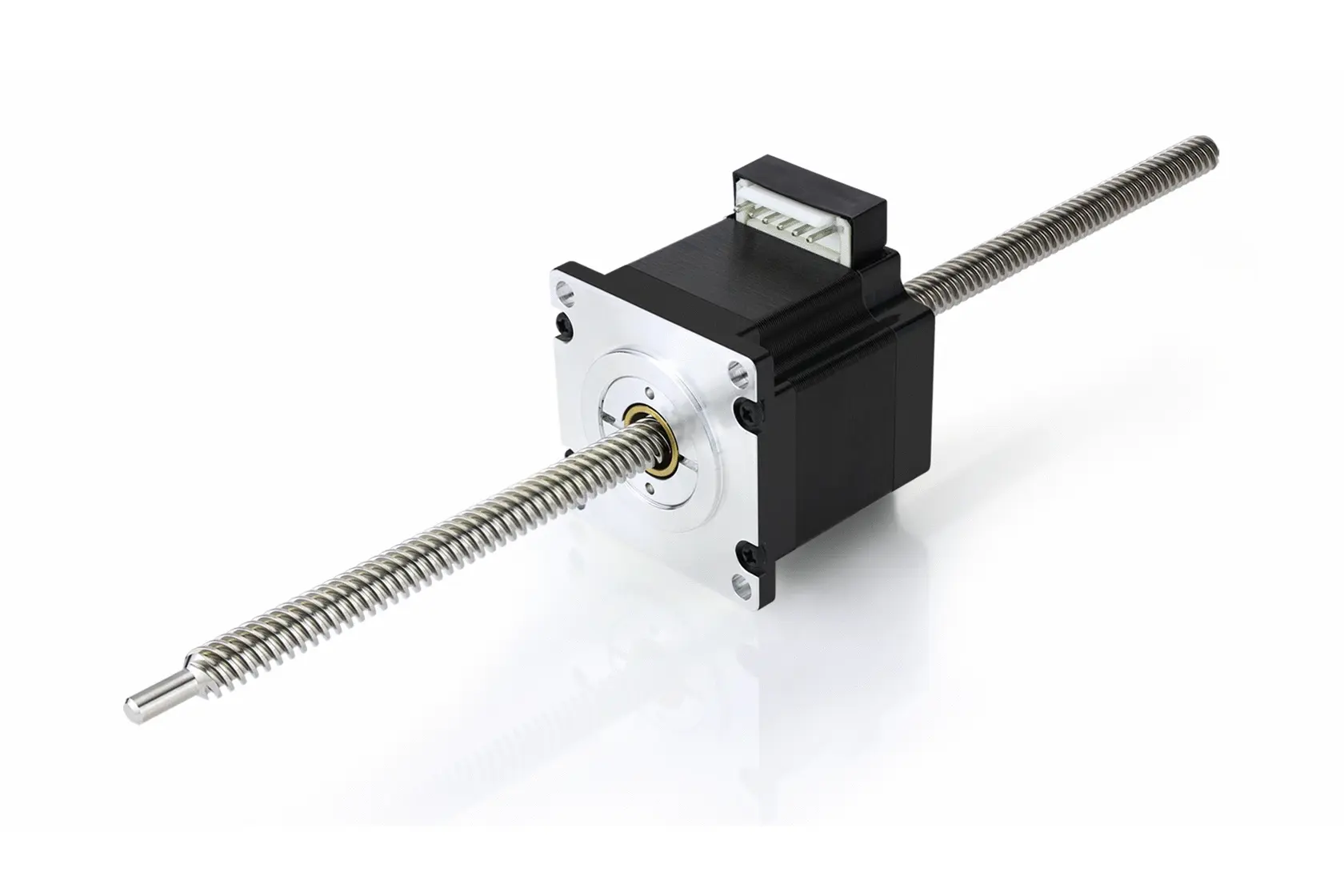

LA56 –  贯通轴式直线步进电机 - NEMA 23

nema 23 non-captive

灵活紧凑的直线步进电机，带 56 mm 法兰。螺纹螺母注塑到空心轴中，并带有梯形或 ACME 螺纹。请查看配件表获取匹配的丝杆。

  • 定位时间短
  • 推力大
  • 不同绕组
  • 集成接头

Nanotec 还提供可与该直线步进电机匹配的电机控制器/驱动器。

请注意：
数据表中列出的力和额定输出功率基于约 10% 至 20% 的占空比，必须相应降低才能获得更大的值。应避免运行至固定的挡块。

LA56 商品
