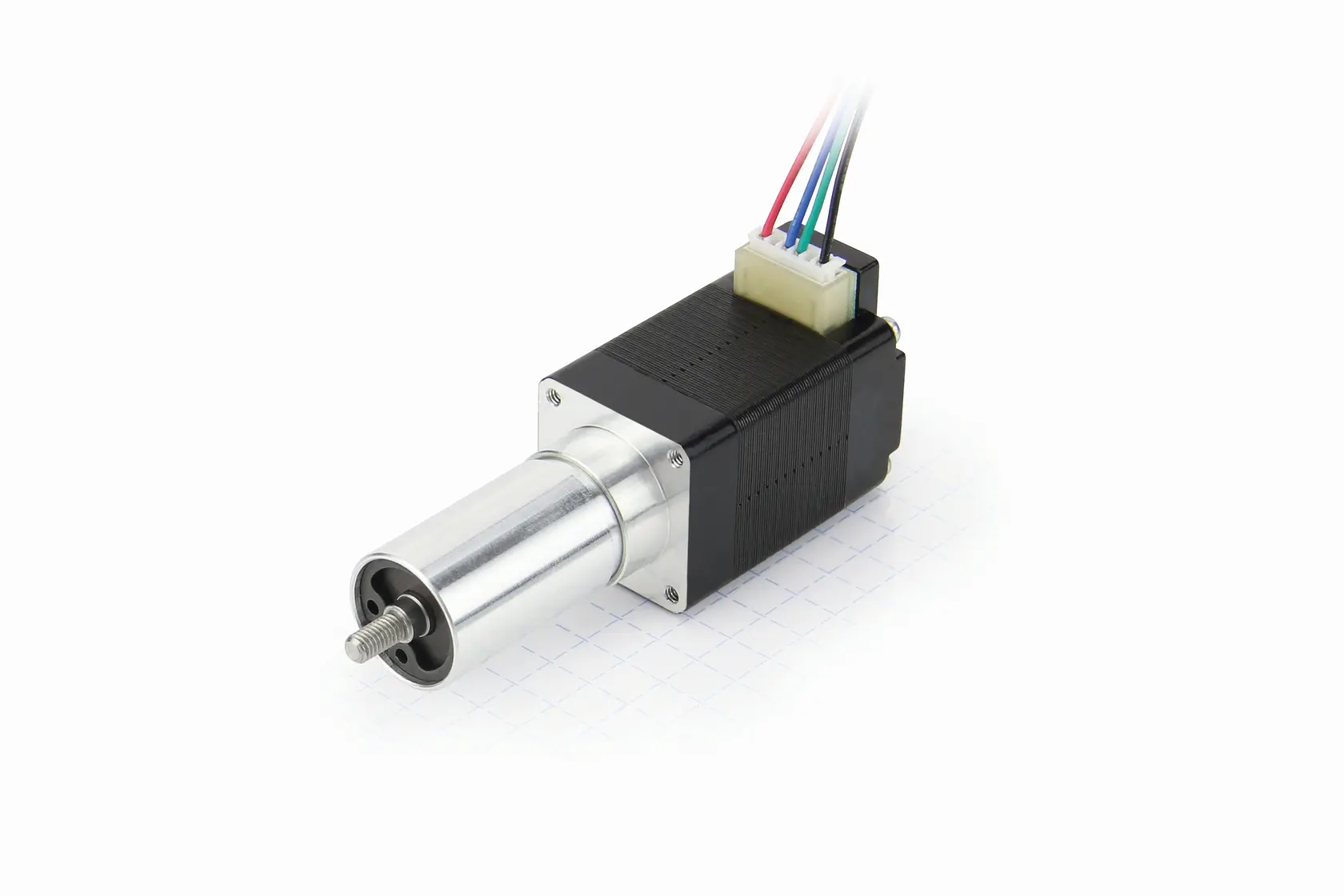

LGA20 –  固定轴式直线步进电机 – NEMA 8

nema 8 captive linear stepper actuator

非常紧凑的直线步进电机，带 20 mm 法兰。由于可移动的多边形轮廓，集成线性导轨无需其它机械组件即可实现高精度进给。

  • 极高的调整速度
  • 定位时间短
  • 推力大
  • 集成接头

Nanotec 还提供可与该直线步进电机匹配的电机控制器/驱动器。要添加编码器，请在选择直线机构后使用配置选项。

LGA20 可与以下编码器结合使用：NTO4L-05-B12-HC

请注意：
数据表中列出的力和额定输出功率基于约 10% 至 20% 的占空比，必须相应降低才能获得更大的值。应避免运行至固定的挡块。
