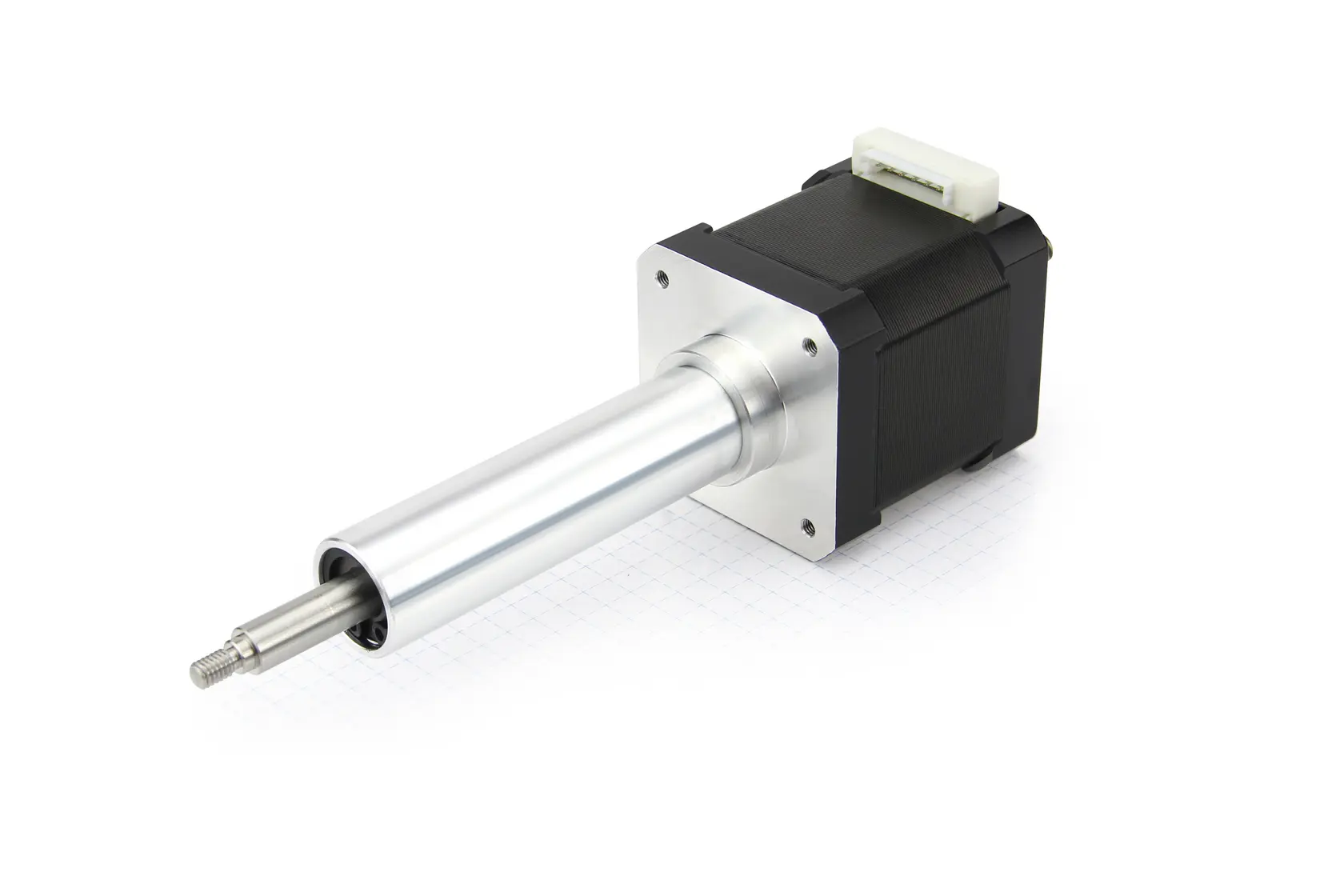

LGA42 – 固定轴式直线步进电机 – NEMA 17

非常紧凑的直线步进电机，带 42 mm 法兰。由于可移动的多边形轮廓，集成线性导轨无需其它机械组件即可实现高精度进给。

极高的调整速度
定位时间短
推力大
集成接头

Nanotec 还提供可与该直线步进电机匹配的电机控制器/驱动器。要添加编码器，请在选择直线机构后使用配置选项。

请注意：
数据表中列出的力和额定输出功率基于约 10% 至 20% 的占空比，必须相应降低才能获得更大的值。应避免运行至固定的挡块。

This actuator is available as a standard product or manufacturing according to customer specifications (see table). Benefit from our volume discount!

		Make-to-stock	Build to order
Motor length	S	x
	L		x
Current/winding	1.4 A	x
	0.3 A, 0.6 A, 0.7 A, 1.3 A, 1.8 A		x
Thread code	TJ.., UIEV, UKAS, UKBN, UKDE, UKGI	x
	UI.. (except UIEV), UKMS, V..		x
Stroke length	19.05 mm, 38.1 mm	x
	12.7 mm, 25.4 mm, 31.8 mm, 50.8 mm, 63.8 mm		x
Exceptions	LGA421L18-B-UKGI-025, LGA421L18-B-UKGI-064	x

Please note:
The force and output power ratings listed in the data sheets are based on a duty cycle of approx. 10% to 20% and must be reduced for higher values. Moving against fixed limit stops should be avoided.
