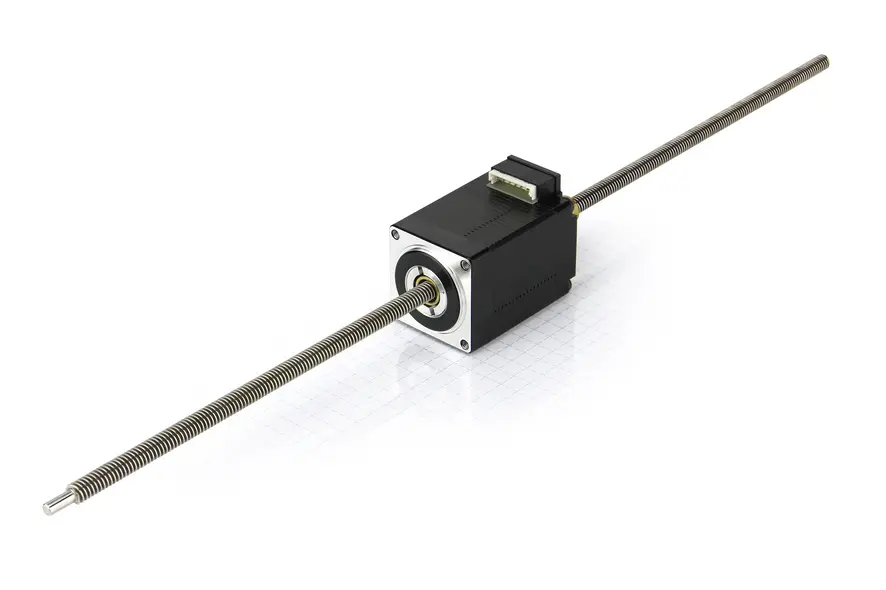

LA281M06-A-THCA – 贯通轴式直线步进电机 - NEMA 11
电机电缆包含在供货范围内。
技术数据
-
尺寸 28 mm
-
轴端 单
-
速度 35 mm/s
-
螺纹类型 Trapezoidal
-
导程 2 mm
-
相电阻 7.3 Ohm
-
衬套长度“L” 15 mm
-
机身长度“A” 41 mm
-
NEMA 11
-
峰值力 152.1 N
-
相电流 0.6 A
-
丝杆直径 5 mm
-
分辨率 10 µm/步
-
相电感 6.52 mH
-
最大轴向间隙 ±0.05 mm
-
重量 0.14 kg

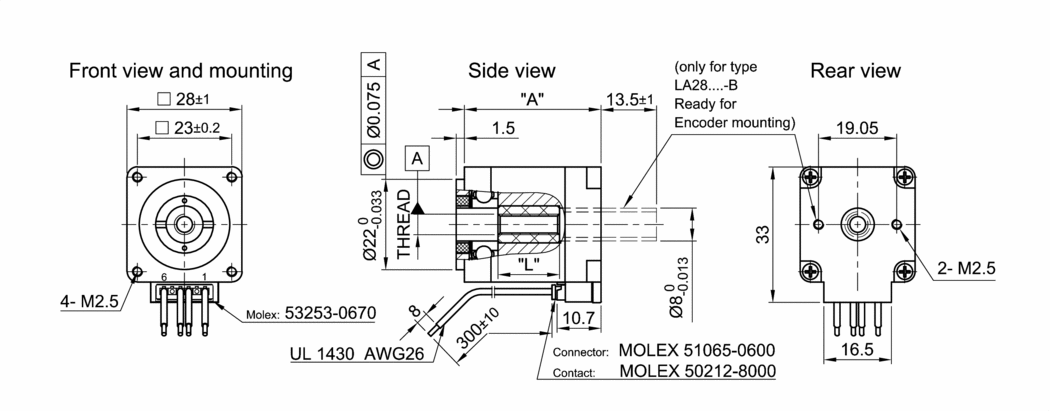

尺寸
速度推力曲线
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
力
|
输出功率
|
Recommended load limit
|
力 [N]/3.60mm/s
|
||
|---|---|---|---|---|---|
| 0.6A 24V |
|
146.66 | |||
|
|
|||||
|
|||||
配件
| NANOLUBE-50G | 轴承润滑脂 |
|
| SCREW-ABA-THCA-200 | 带梯形螺纹的丝杆 |
|
| SCREW-ABA-THCA-300 | 带梯形螺纹的丝杆 |
|
| SCREW-AAA-THCA-1000 | 带梯形螺纹的丝杆 |
|
