NOE2 –  3 通道光学编码器

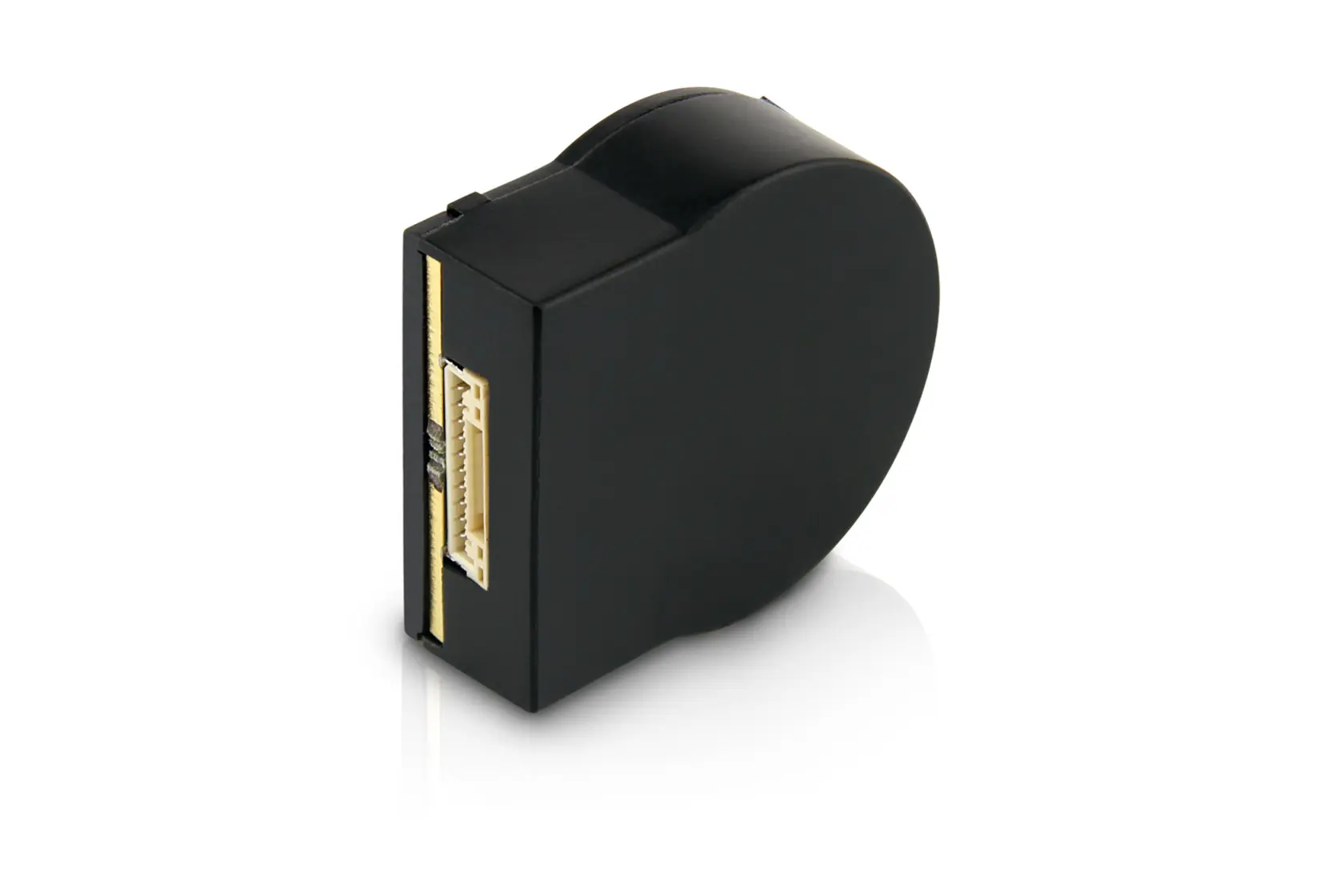

Optical 3-Channel Encoder NOE2 with integrated Linedriver in 5V and 24V for stepper motors, Linear actuators and BLDC motors

这款 3 通道编码器高度为 11.5 mm，宽度仅为 31 mm，与同类产品相比非常紧凑。它还可与较大的 步进电机 和 BLDC 电机。

NOE2 编码器凭借每转 1,000 至 16,000 个脉冲的分辨率范围，可提供高分辨率信号，即使在低速下也能确保理想的同步性。其集成式线驱动程序提高了抗干扰能力。

  • 增量分辨率：1,000 – 4,000 CPR / 4,000 – 16,000 PPR
  • 最大转速：3,300 rpm
  • 适用于 5 – 15 mm 四种不同的轴直径
  • 适用电机尺寸 NEMA 14 – 34

NOE2 编码器提供 5 V 版本和 24 V 版本。

请注意：
该编码器只能作为组合商品供应，并且必须由 Nanotec 安装。

NOE2 商品
