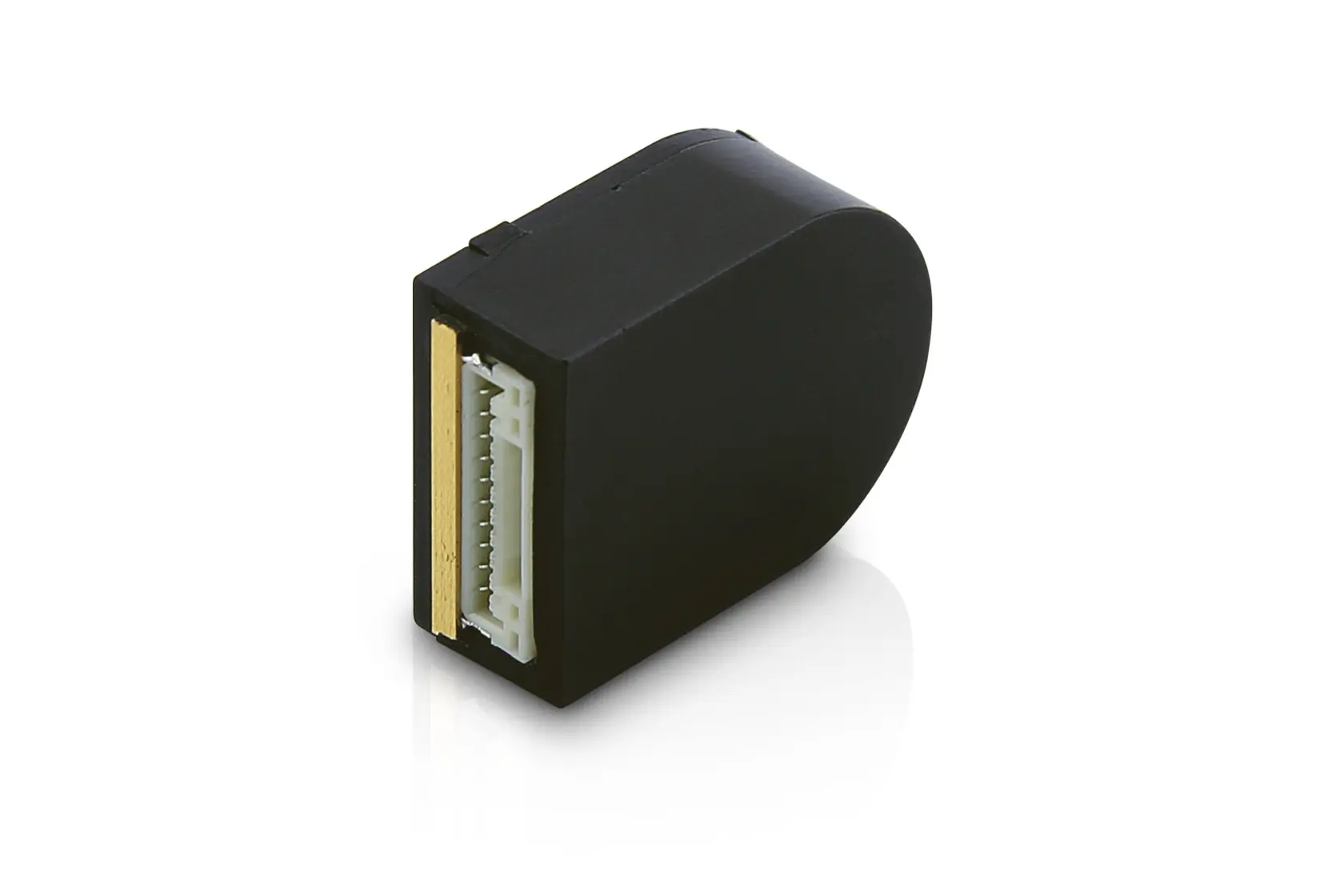

NOE1 –  3 通道微型编码器

NOE1

NOE1 系列高度为 10 mm，宽度为 20 mm，特别紧凑，可同时兼容 BLDC 电机和 步进电机。

NOE1 提供每转 500 至 2,000 个脉冲的分辨率，具有最佳同步性，即使在低速下也是如此。集成式线驱动程序确保了高抗干扰性。

  • 增量分辨率：500 – 2,000 CPR / 2,000 – 8,000 PPR
  • 最大转速：6,600 rpm
  • 适用于轴直径 4mm、5mm 和 6 mm
  • 适用电机尺寸 NEMA 8 – 11

请注意：
​​​​​​​该编码器只能作为组合商品供应，并且必须由 Nanotec 安装。
