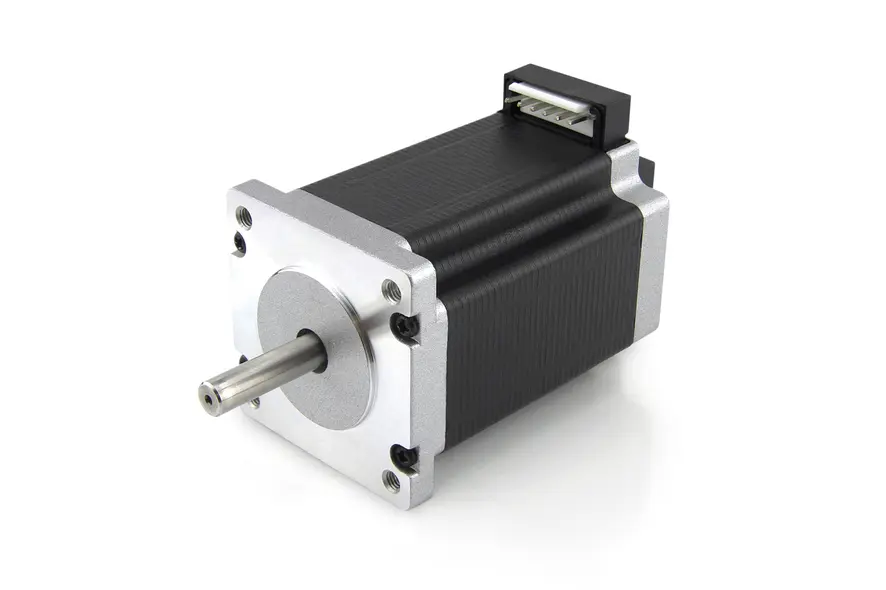

SC6018L4204-ENO05K – 步进电机 - NEMA 24
您可以对此商品进行其他配置。请单击下面的配置按钮开始。
技术数据
-
NEMA 24
-
相电流 4.2 A
-
转子的转动惯量 840 gcm²
-
相电感 3.2 mH
-
编码器类型 增量
-
编码器分辨率 4000 CPR
-
机身长度“A” 88 mm
-
轴 D向轴
-
尺寸 60 mm
-
保持转矩 354 Ncm
-
相电阻 0.65 Ohm
-
带编码器
-
编码器电压 5 V
-
分辨率 1.8 °/步
-
重量 1.4 kg

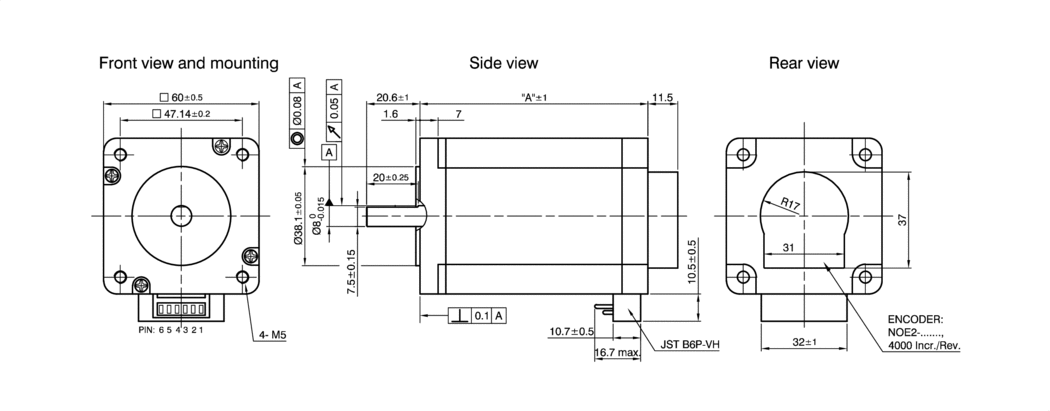

尺寸
力矩曲线
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
转矩
|
输出功率
|
转矩 [Nm]/124.46rpm
|
||
|---|---|---|---|---|
| 4.2A 24V | 2.57 | |||
| 4.2A 48V | 2.81 | |||
|
|
||||
配件
| ZK-NOE1-10-500-S | 编码器线缆 NOE 0.5m |
|
| ZK-NOE1-10-2000-S | 编码器线缆 NOE 2m |
|
| ZK-JST-VHR-6N-0.5M-S | 电机电缆 SC60 0.5m |
|
