ASA5618 –  带编码器的IP65 防护等级的步进电机 - NEMA 23

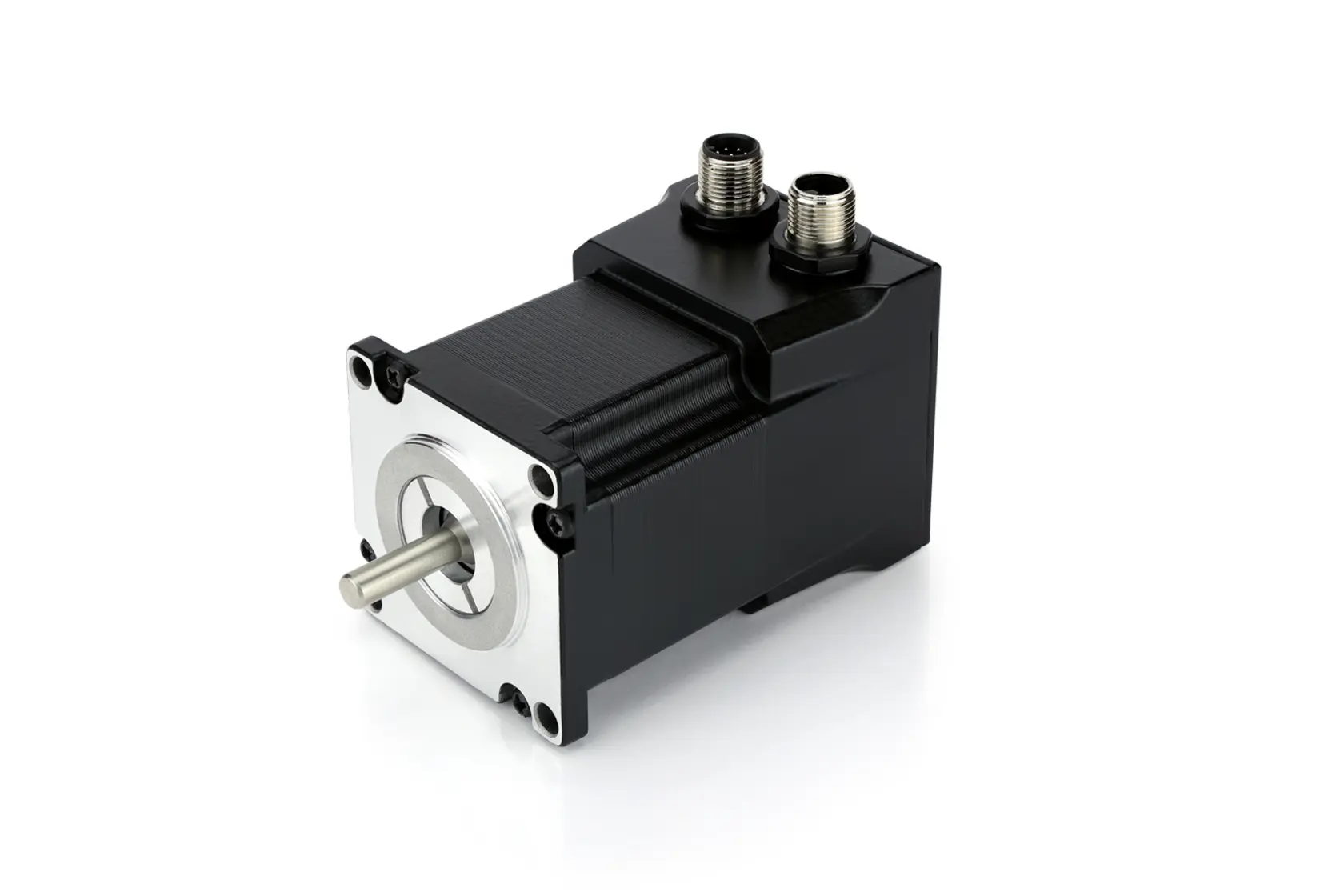

NEMA 23 ASA5618 high-torque stepper motor rated IP65 with UL/CSA certification

ASA5618 步进电机的防护等级为 IP65（输出轴的防护等级为 IP54），通过了 UL/CSA 认证，并提供卓越的电磁兼容性 (EMC)。编码器是集成的 – 有两种类型可供选择：多圈或增量式。较大数量的 ASA5618 也可与集成式保持刹车一起订购。

这款电机有两种长度可选。

  • 法兰大小为 56 mm
  • 保持扭矩：140 – 230 Ncm
  • 增量分辨率：4,096 CPR / 16,384 PPR
  • SSI 分辨率：16 位多圈 / 17 位单圈
  • UL/CSA 认证

ASA5618 商品
