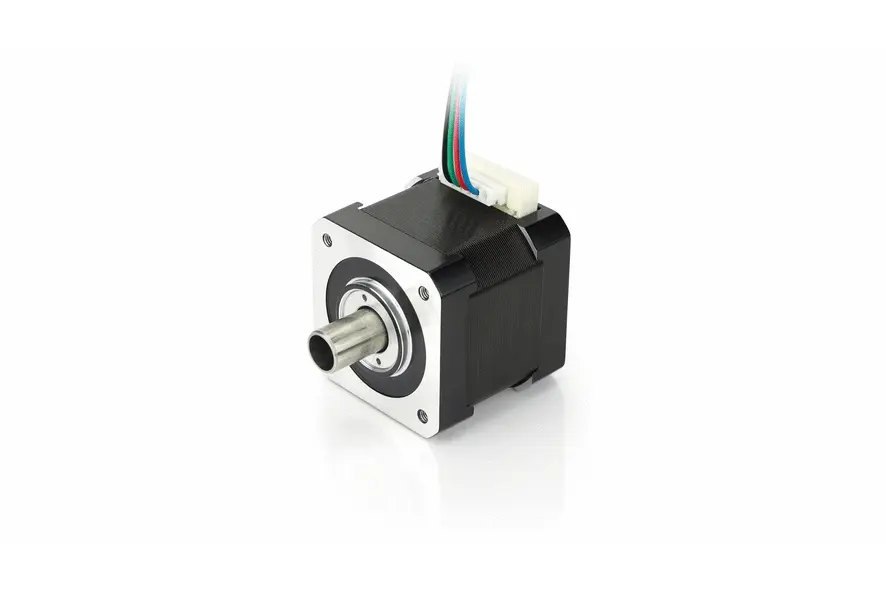

SCA4218M1804-L – 带空心轴的步进电机 – NEMA 17
您可以对此商品进行其他配置。请单击下面的配置按钮开始。
技术数据
-
NEMA 17
-
相电流 1.8 A
-
转子的转动惯量 54 gcm²
-
相电感 2.6 mH
-
机身长度“A” 39.5 mm
-
尺寸 42 mm
-
保持转矩 35.3 Ncm
-
相电阻 1.3 Ohm
-
分辨率 1.8 °/步
-
重量 0.28 kg
尺寸
力矩曲线
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
转矩
|
输出功率
|
转矩 [Nm]/299.50rpm
|
||
|---|---|---|---|---|
| 1.8A 12V | 0.241 | |||
| 1.8A 24V | 0.361 | |||
| 1.8A 48V | 0.355 | |||
|
|
||||
